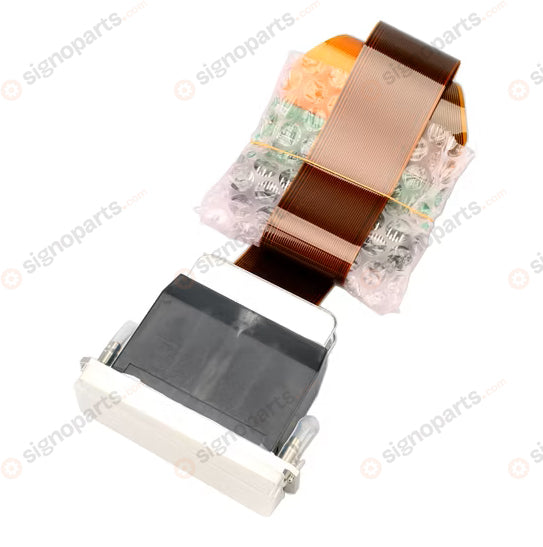

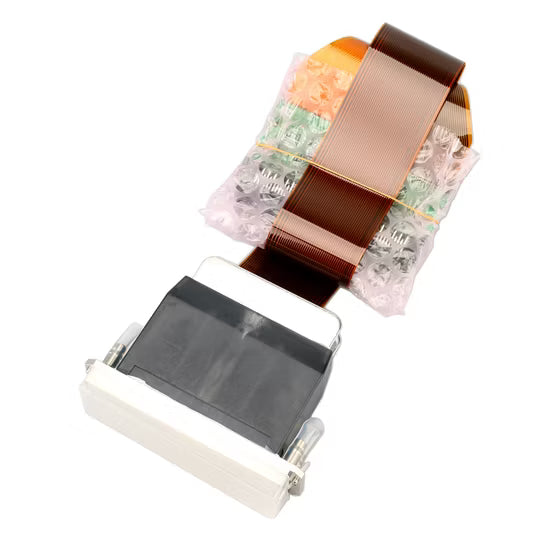

Ricoh GEN5 UV print head (MH5420 40cm cable)

Rs. 0.00

Sale Sold out

Model Number: MH5420
Nozzle Configuration: 1,280 nozzles (4 x 320 channels)
Resolution: 600 dpi physical resolution
Ink Compatibility: Compatible with UV, solvent, and aqueous (water-based) inks
Color Support: Supports up to four ink colors with isolated ink paths in one print head (or 2-color in certain configurations)
Drop Volume: Variable droplet size, enabling grayscale printing from a minimum of 7 pl to a maximum of 35 pl
Jetting Frequency: Up to 30 kHz in binary mode and 20 kHz in grayscale mode
Cable Length: 40cm (400mm), which is a common "long cable" variant, also available in a shorter 140mm or 390mm length
Construction: Made of stainless steel, offering excellent anti-corrosion properties and durability
Temperature Control: Integrated heater and thermistor allows for the use of high-viscosity inks and maintains optimal ink flow
